Tag 17: Wake Up Light

/*
  TCP-Server: Wakeup light
  Change SSID and PASSWORD.

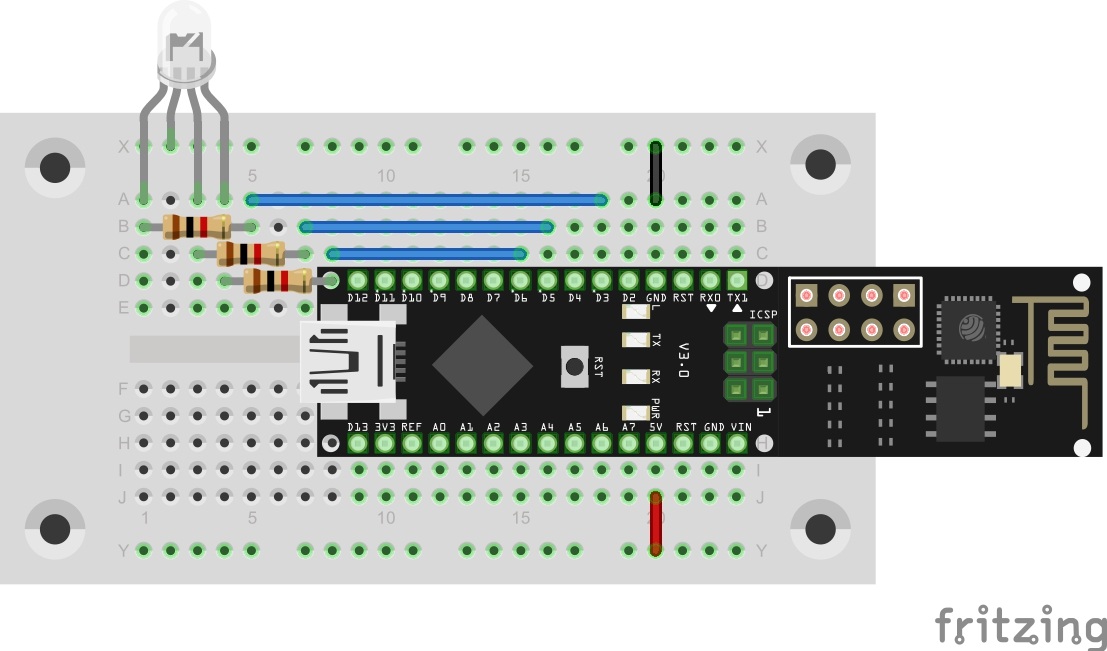

  RGB-Led (common cathode) on Pins 3,5,6
*/

#include <NanoESP.h>
#include <NanoESP_HTTP.h>
#include <SoftwareSerial.h>
#include "Websites.h"

#include <math.h>
#include <Time.h>

#define SSID "YourSSID"
#define PASSWORD "YourPassword"

#define LED_WLAN 13

#define RED 3
#define GREEN 5
#define BLUE 6
#define GND 4

#define BUTTON 7

NanoESP nanoesp = NanoESP();
NanoESP_HTTP http = NanoESP_HTTP(nanoesp);

//String timeServerIP = ; // time.nist.gov NTP server address
String ntpServerName = "195.145.119.188";//"time.nist.gov";
const int NTP_PACKET_SIZE = 48; // NTP time stamp is in the first 48 bytes of the message
byte packetBuffer[NTP_PACKET_SIZE]; //buffer to hold incoming and outgoing packets

int alarmHour = 0, alarmMinute = 2;
bool alarm;
byte cRed = 0, cBlue = 0, cGreen = 0;

unsigned long previousMillis = 0;        // will store last time a msg was send
unsigned long interval = 78; //

void setup() {
  Serial.begin(19200);
  nanoesp.init();

  pinMode(RED, OUTPUT);
  pinMode(GREEN, OUTPUT);
  pinMode(BLUE, OUTPUT);

  pinMode(GND, OUTPUT);
  digitalWrite(GND, LOW);

  pinMode(BUTTON, INPUT);

  //Only Station Mode for TimeSync
  nanoesp.configWifiMode(STATION);
  //delay(1000);

  // Wait till Connected to WiFi
  if (nanoesp.wifiConnected())digitalWrite(LED_WLAN, HIGH); else Serial.println(F("Error WLAN Connect"));

  //Start TCP Server
  if (nanoesp.startTcpServer(80))    Serial.println(F("TCP Server Activ")); else   Serial.println(F("TCP Server Error"));

  //Print IP in Terminal
  Serial.println(nanoesp.getIp());

  setSyncProvider(getNtpTime);
  Show_Time();
}


time_t getNtpTime() {
  //convert to time_t , Paramter: connectionId, ServerAdress, Timezone
  return (time_t)getNTPpacket(4, ntpServerName, 2);
}

void loop() {
  String method, ressource, parameter;
  int id ;

  if (http.recvRequest(id, method, ressource, parameter)) {

    Serial.println("New Request from id :" + String(id) + ", method: " + method +  ", ressource: " + ressource +  " parameter: " + parameter);

    if (ressource == "/") {
      http.sendFromFlash(id, index, sizeof(index));
      nanoesp.closeConnection(id);
    }

    if (ressource == "/settimer") {
      if (parameter != "") {
        //timer=02%3A03&
        String sHour = parameter.substring(parameter.indexOf('=') + 1, parameter.indexOf('%'));
        String sMin = parameter.substring(parameter.indexOf('A') + 1, parameter.indexOf('&'));

        String sDuration = parameter.substring(parameter.indexOf('&') + 1);
        sDuration = sDuration.substring(sDuration.indexOf('=') + 1, sDuration.indexOf('&'));

        alarmHour = sHour.toInt();
        alarmMinute = sMin.toInt();
        int iDuration = sDuration.toInt();
        interval *= iDuration;

        Serial.println("Timer: " + String(alarmHour) + ":" + String(alarmMinute) + "   Duartion: " + String (iDuration) );
        Show_Time();

      }
      nanoesp.closeConnection(id);
    }


    if (ressource == "/turnoff") {
      alarm = false;
      cRed = 0; cBlue = 0; cGreen =0;
      analogWrite(RED,cRed); analogWrite(BLUE,cBlue);analogWrite(GREEN,cGreen);
    }

    else {
      http.sendFromFlash(id, error404, sizeof(error404));
      nanoesp.closeConnection(id);
    }
  }
  else {
    if (hour() == alarmHour) {
      if (minute() == alarmMinute) {
        if (!alarm) alarm = true;
      }
    }

    if (alarm) wakeUp();
  }
}

void MorningAlarm() {

  Serial.println("Alarm: - turn lights off");
}


void wakeUp() {
  if (millis() - previousMillis >= interval) {
    previousMillis = millis();
    if (cRed == 0) Show_Time();
    if (cRed < 255) {
      cRed++; analogWrite(RED, cRed );
    }
    else {
      if (cGreen < 255) {
        cGreen++;
        analogWrite(GREEN, cGreen);
      }
      else {
        if (cBlue < 255) {
          cBlue++;
          analogWrite(BLUE, cBlue );
          if (cBlue == 255) Show_Time();
        }
      }
    }
  }
}



// prepare an NTP request to the time server and send to the given
bool sendNTPpacket(int id, String address)
{
  // set all bytes in the buffer to 0
  memset(packetBuffer, 0, NTP_PACKET_SIZE);
  // Initialize values needed to form NTP request
  // (see URL above for details on the packets)
  packetBuffer[0] = 0b11100011;   // LI, Version, Mode
  packetBuffer[1] = 0;     // Stratum, or type of clock
  packetBuffer[2] = 6;     // Polling Interval
  packetBuffer[3] = 0xEC;  // Peer Clock Precision
  // 8 bytes of zero for Root Delay & Root Dispersion
  packetBuffer[12]  = 49;
  packetBuffer[13]  = 0x4E;
  packetBuffer[14]  = 49;
  packetBuffer[15]  = 52;
  //
  // if we need a cr/lf
  //
  packetBuffer[NTP_PACKET_SIZE    ]  = 0x0D;
  packetBuffer[NTP_PACKET_SIZE + 1]  = 0x0A;
  // all NTP fields have been given values, now
  // you can send a packet requesting a timestamp:
  if ( nanoesp.sendRaw(id, packetBuffer, NTP_PACKET_SIZE)) return true;
  return false;
}

long getNTPpacket(int id, String address, int timeZone) {
  unsigned long secsSince1900;
  byte          offset = 40;

  if (!nanoesp.newConnection(id, UDP, address, 123)) Serial.println ("no connection ntp server"); //NTP requests are to port 123
  delay(100);
  if (!sendNTPpacket(id, address)) {
    Serial.println("No time request send");
    return 0;
  }
  nanoesp.setTimeout(2000);
  if (nanoesp.find("+IPD,")) {
    int vid = nanoesp.parseInt();
    nanoesp.find(",");
    int len = nanoesp.parseInt();
    //Serial.println(String(len));
    byte buffer[len];

    nanoesp.find(":");
    nanoesp.readBytes(buffer, 48);

//    for (int i = 0; i <= NTP_PACKET_SIZE; i++) {
//      Serial.print(buffer[i], HEX);
//    }

    // convert four bytes starting at location 40 to a long integer
    secsSince1900 =  (unsigned long)buffer[offset + 0] << 24;
    secsSince1900 |= (unsigned long)buffer[offset + 1] << 16;
    secsSince1900 |= (unsigned long)buffer[offset + 2] << 8;
    secsSince1900 |= (unsigned long)buffer[offset + 3];

    nanoesp.find("OK\r\n");
    nanoesp.closeConnection(id);

    //   return secsSince1900 + timeZone * SECS_PER_HOUR;                    // NTP  Date
    return secsSince1900 - 2208988800UL + timeZone * SECS_PER_HOUR;         // UNIX Date
  }
  else {
    Serial.println("no time recieved");
    nanoesp.closeConnection(id);
    return 0;
  }
}

void Show_Time()
{
  String shour, sminute, ssecond;

  Serial.print("Date: ");
  Serial.print(day());
  Serial.print(".");
  Serial.print(month());
  Serial.print(".");
  Serial.println(year());


  if (hour() <= 9) shour = "0" + String(hour()); else shour = String(hour()); // adjust for 0-9
  if (minute() <= 9) sminute = "0" + String(minute());  else sminute = String(minute());
  if (second() <= 9) ssecond = "0" + String(second());  else ssecond = String(second());
  Serial.println( "Time: " + shour + ":" + sminute + ":" + ssecond );
}
